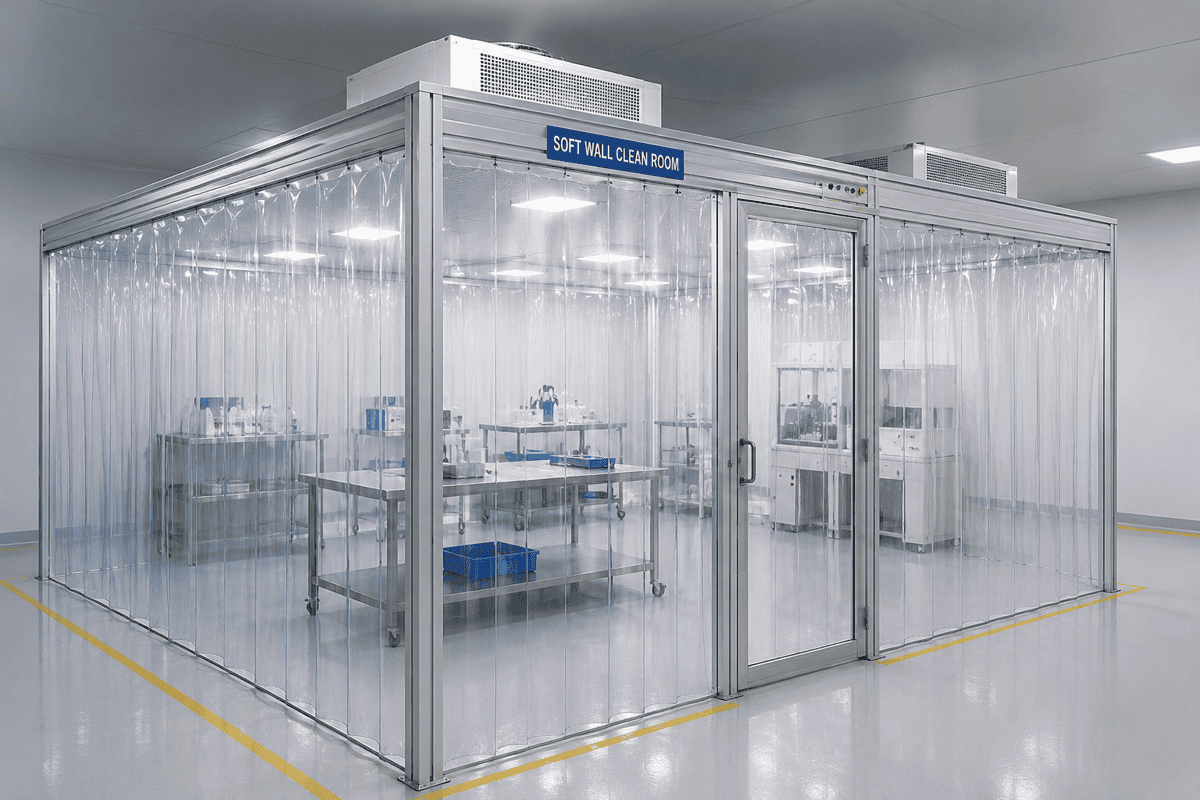

Soft Wall Clean Room

Soft Wall Clean Room

A Soft Wall Clean Room is a flexible, cost-effective controlled environment designed to minimize airborne contamination and maintain clean working conditions. Constructed using a durable aluminum or stainless-steel frame with transparent antistatic PVC curtains, Soft Wall Clean Rooms provide an efficient solution for industries requiring controlled cleanliness without the expense and complexity of a permanent cleanroom structure.

These modular cleanrooms are equipped with HEPA or ULPA filtration systems that deliver clean, filtered air while maintaining the desired cleanliness classification. Their customizable design allows easy installation, expansion, relocation, and integration into existing facilities.

Soft Wall Clean Rooms are widely used in pharmaceutical manufacturing, biotechnology laboratories, electronics assembly, medical device production, food processing, and research facilities where contamination control is critical.

Special Features

Cleanliness Class ISO Class 5 to ISO Class 8 (As per ISO 14644-1)
Air Flow Type Vertical / Horizontal Laminar Flow
Air Velocity 0.45 ± 0.05 m/s
HEPA Filter Efficiency 99.99% @ 0.3 Micron
ULPA Filter (Optional) 99.999% @ 0.12 Micron
Pre Filter Efficiency 90% down to 10 Micron
Frame Material Powder-Coated MS / Aluminium / SS 304
Wall Material Transparent Anti-Static Soft PVC Curtains
Lighting LED Lighting with Flush Mounted Fixtures
Noise Level ≤ 65 dB
Control System Digital Control Panel with On/Off & Filter Monitoring
Power Supply 230V AC / 50 Hz / Single Phase
Operating Temperature 18°C to 25°C
Optional Accessories Pass Box, Air Shower, Differential Pressure Gauge, Magnehelic Gauge, UV Light, Monitoring System
Applications Pharmaceutical, Biotechnology, Electronics, Medical Device Manufacturing, Food Processing & Research Laboratories

Applications

Pharmaceutical Industry, Biotechnology & Healthcare, Electronics Industry, Food & Beverage Industry, Research & Development, Industrial Manufacturing
