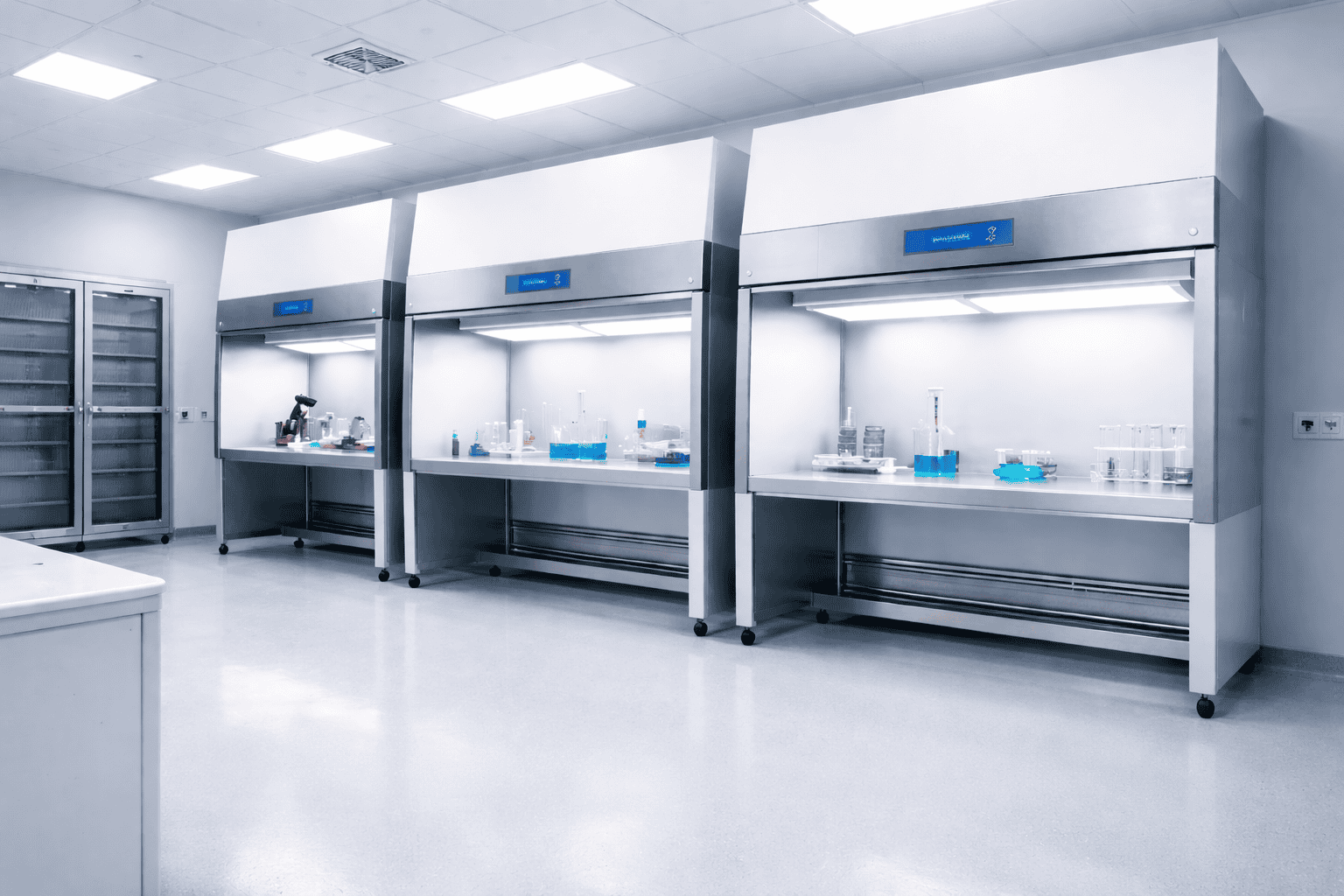

Laminar Air Flow

Laminar Air Flow

Laminar air flows can maintain a working area devoid of contaminants. Many medical and research laboratories require sterile working environments in order to carry out specialized work. Hygiene Flow Systems Laminar Flow Cabinets create particle free working environments by projecting air through a filtration system and exhausting it across a work surface in a laminar or uni-directional air stream. They provide an excellent clean air environment for a number of laboratory requirements. Laminar flow cabinets may have a UV-C germicidal lamp to sterilize the interior and contents before usage to prevent contamination of experiment. Germicidal lamps are usually kept on for 15 minutes to sterilize the interior and no contact is to be made with a laminar flow hood during this time.

Special Features:

Cleanliness ISO Class 100 as per US FED STD 209E (IS 14644-1)
Air Balancing 100% Filter at air working area
Particle Retention 0.3 Micron & Above
Average Velocity 0.46 m/s
Noise Level 55 dB ± 5
Supply HEPA Filter 0.3 Micron HEPA Filter, Efficiency: 99.997%, Pressure Drop-18mm
Pre filter 10-15 Micron, Efficiency : 90%
Supply Motor Single Phase Motor with suitable Centrifugal blower
Control Systems Feather Touch On / Off control
Standard Accessories Additional Power Socket, Air/Gas Inlet Nipple, Heavy Duty Castor Wheel & Wire Chord
Power Requirement 230 Volt / 50 Hz / 1 Phase

Applications:

Microbiology Labs, Biotechnology Labs, Electronics Assembly,  Pharmaceutical production, Hospital ,Processing Food & Water .

Type Of Laminar Air Flow:

  1. Vertical Laminar Air Flow Cabinet
  2. Horizontal Laminar Air Flow Cabinet
  3. Ceiling Laminar Air Flow
  4. Mobile/Trolley Laminar Flow Unit
  5. Table Top Laminar Air Flow
  6. OT Laminar Air Flow

Available Size:

Model: HFL600, HFL900, HFL1200, HFL1500, HFL1800

Working Size: 2x2x2, 3x2x2, 4x2x2, 5x2x2, 6x2x2
