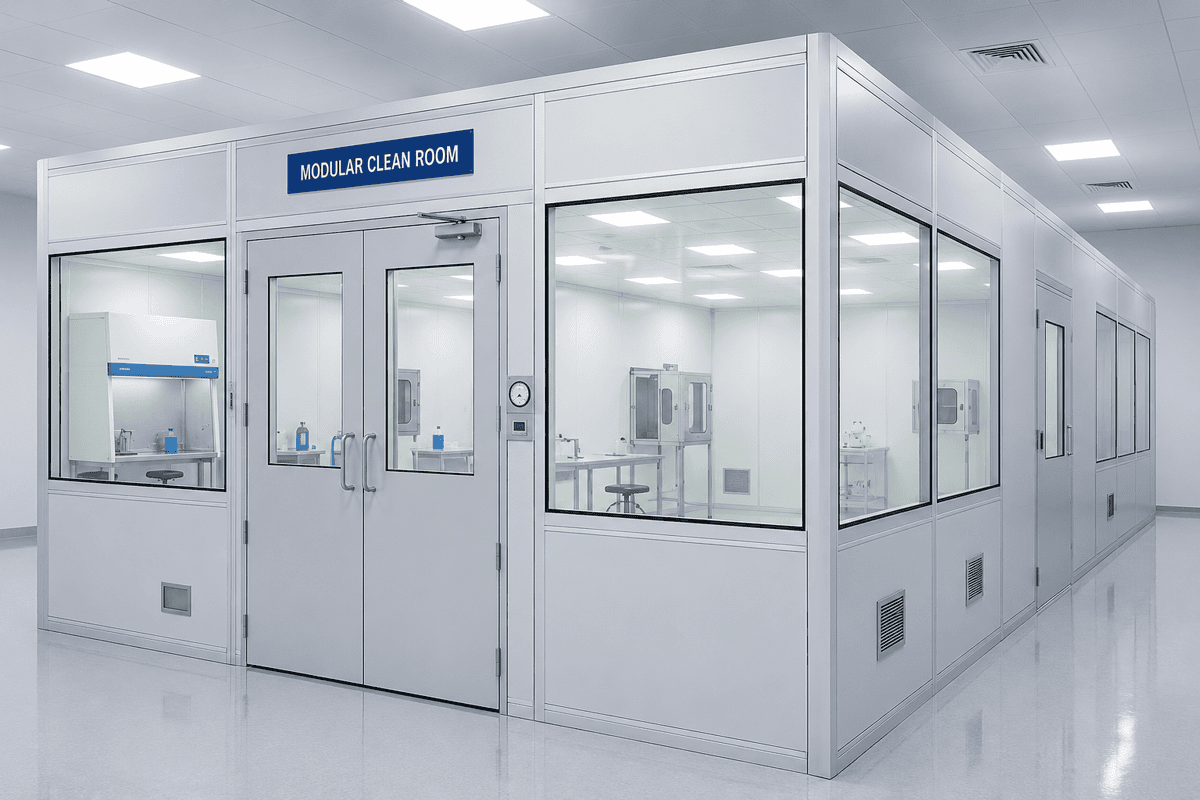

A Modular Clean Room is a prefabricated, self-contained controlled environment designed to maintain low levels of airborne particles, contaminants, and pollutants. Built using modular wall panels, ceiling systems, HEPA filtration units, and cleanroom accessories, these cleanrooms provide a highly efficient and customizable solution for industries requiring strict environmental control.
Unlike conventional construction, modular cleanrooms offer faster installation, flexibility for future expansion, and cost-effective operation while maintaining compliance with international cleanroom standards such as ISO 14644-1, GMP, and FDA requirements.
| Cleanliness Class | ISO Class 5 to ISO Class 8 (As per ISO 14644-1) |
| Construction Type | Modular Panel-Based Construction |
| Wall Panels | PUF / EPS / Rockwool Insulated Sandwich Panels |
| Panel Thickness | 50 mm to 100 mm (Customizable) |
| Air Flow System | Vertical or Horizontal Laminar Air Flow |
| HEPA Filter Efficiency | 99.99% @ 0.3 Micron |
| ULPA Filter (Optional) | 99.999% @ 0.12 Micron |
| Air Changes Per Hour | 20 – 600 ACH (Depending on Cleanliness Class) |
| Ceiling System | Walkable / Non-Walkable Modular Ceiling |
| Flooring | Epoxy / Vinyl / Conductive Flooring Options |
| Lighting | Flush Mounted LED Clean Room Lights |
| Noise Level | ≤ 65 dB |
| Differential Pressure | Maintained as per Process Requirement |
| Control System | Digital Monitoring and Control Panel |
| Doors & Windows | Flush Type Clean Room Doors with Double-Glazed Viewing Panels |
| Power Requirement | 230V / 415V AC, 50 Hz |
| Optional Accessories | Pass Box, Air Shower, Dynamic Pass Box, FFU, Magnehelic Gauge, Particle Counter, BMS Integration |
| Compliance | ISO 14644-1, GMP, FDA Guidelines |
Pharmaceutical Industry, Biotechnology & Healthcare, Electronics Industry, Food & Beverage, Research & Development
